Custom CNC Machined Flanges | Precision Metal Rings

Custom CNC Precision Flange Rings and Metal Parts with Black Surface Finish

Product Overview

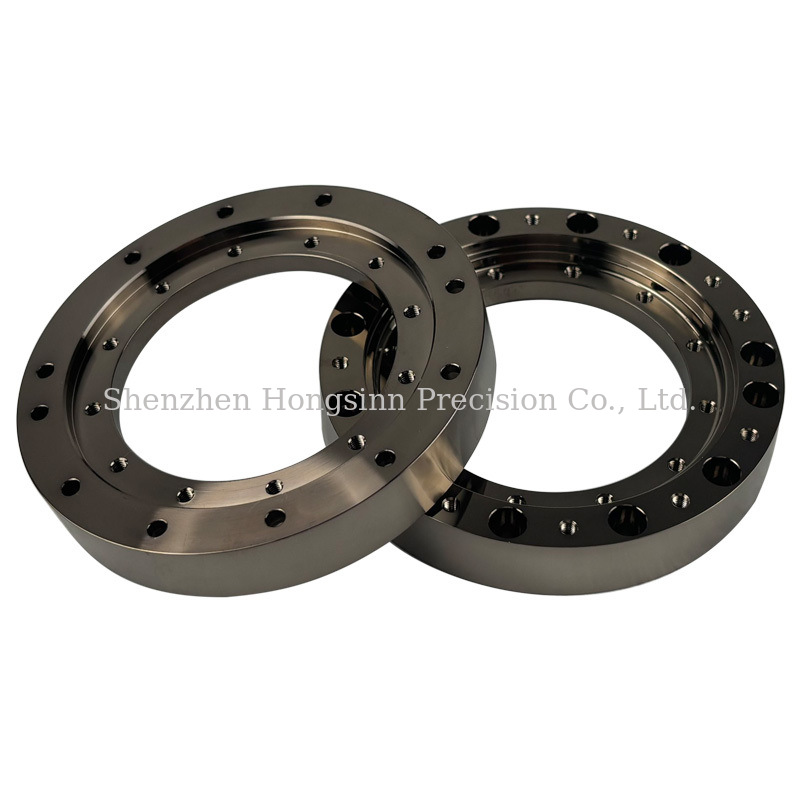

Hongsinn Precision provides custom CNC machining services for precision flange rings, ring-shaped connectors, and complex metal structural components. The product shown features a circular main body with a central through-hole, stepped inner and outer diameters, and multiple sets of circumferentially arranged mounting and threaded holes. Hole layouts, fit dimensions, and connection configurations can be tailored to meet specific equipment design requirements.

These precision flange components are typically used for connecting, positioning, securing, and assembling mechanical components. Through processes such as CNC turning, CNC milling, drilling, tapping, and precision boring, we ensure strict adherence to customer specifications regarding hole positional accuracy, surface flatness, concentricity, and assembly fit.

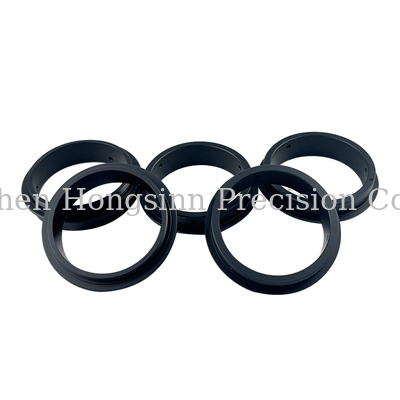

The parts feature a black metallic finish; the specific surface treatment process can be selected based on the material used and the intended operating environment. Hongsinn Precision offers OEM/ODM services, manufacturing parts according to client drawings. We provide comprehensive precision machining solutions—from prototype development to mass production—for overseas equipment manufacturers, industrial component procurers, and mechanical engineering firms.

Technical Specifications

Product Features

1. Multi-Hole Flange Design

Mounting holes, threaded holes, and locating holes can be arranged on the inner and outer rings of the flange according to engineering drawings, facilitating bolted connections and structural assembly with mating components.

2. Precision Annular Machining

Features such as central through-holes, internal steps, annular grooves, and mating surfaces can be machined to specifications, meeting the positioning and assembly requirements of various components.

3. Precision CNC Machining

Processes including CNC turning, CNC milling, drilling, tapping, and other relevant techniques are employed based on the part's geometry to ensure precise control over critical dimensions and hole positioning.

4. Optional Black Surface Finishes

Depending on the base material, required wear and corrosion resistance, aesthetic preferences, and the operating environment, options such as black oxide, chemical blackening, black anodizing, or other suitable surface treatments can be applied. The specific process must be determined in conjunction with the material type; selection cannot be based on color alone.

5. OEM/ODM Customization

Custom production is available based on 2D engineering drawings, 3D CAD models, or physical samples. Parameters such as outer diameter, inner diameter, thickness, step height, hole configuration, and thread specifications can be tailored to your requirements.

Hongsinn Precision Custom Machining Services

Shenzhen Hongsinn Precision specializes in the manufacturing of custom, non-standard precision components, providing OEM/ODM machining services to clients worldwide. For flange rings and similar precision annular parts, we evaluate the optimal machining approach based on the product’s structure and conduct rigorous dimensional and visual inspections in accordance with your technical drawings.

Custom Manufacturing: We support development based on 2D engineering drawings, 3D models, or physical samples.

Multi-Process Capabilities: We utilize a range of processes—including turning, milling, drilling, and tapping—tailored to the specific structure of your parts.

Quality Control: We verify critical dimensions, hole positions, and assembly features in strict adherence to your technical specifications.

Surface Treatment Solutions: We assess and recommend appropriate surface treatments based on the base material and the intended operating environment.

Export Support: We provide comprehensive services for international clients, including project coordination, specialized packaging, and logistics support.

Hongsinn Precision Manufacturing Advantages

• Established in 2010, with over 15 years of experience in precision machining
• ISO 9001:2015 Quality Management System certified
• ISO 14001:2015 Environmental Management System certified
• Equipped with the AFMING GMU-800 EVO 5-axis machining center
• Extensive inventory of CNC lathes, turn-mill centers, and machining centers
• Inspection using Zeiss CONTURA Coordinate Measuring Machines (CMM)
• Supports rapid prototyping, as well as small-batch and high-volume production
• Products exported to markets in Europe, the US, Germany, Japan, Canada, and Southeast Asia

Frequently Asked Questions

• 1. Are you a trade company or manufacturer?

  We are a manufacturer with more than 14 years of experience in CNC machining and sheet metal fabrication.

• 2. Can you protect my business? Will my drawing be safe after you get it?

  Yes, we can sign the NDA before you send the drawing.

• 3. Available for customized design drawings?

  Yes, we accept CAD, STEP, IGS, PDF, Solidwork, etc.

• 4. Do you provide samples?

  Yes, there is a sample charge, which can be refunded when you place the order.

• 5. How soon can I get your quotation?

  Within 12 hours.

• 6. What's the lead time?

  5-25 working days, based on order quantity.
