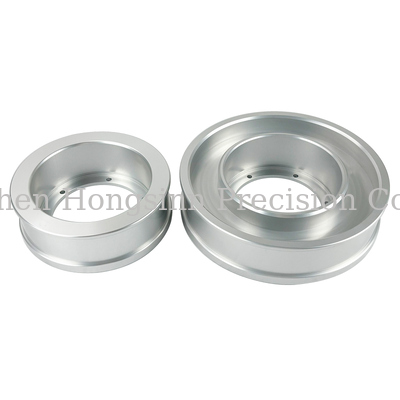

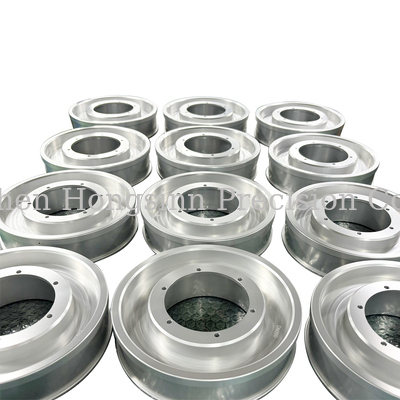

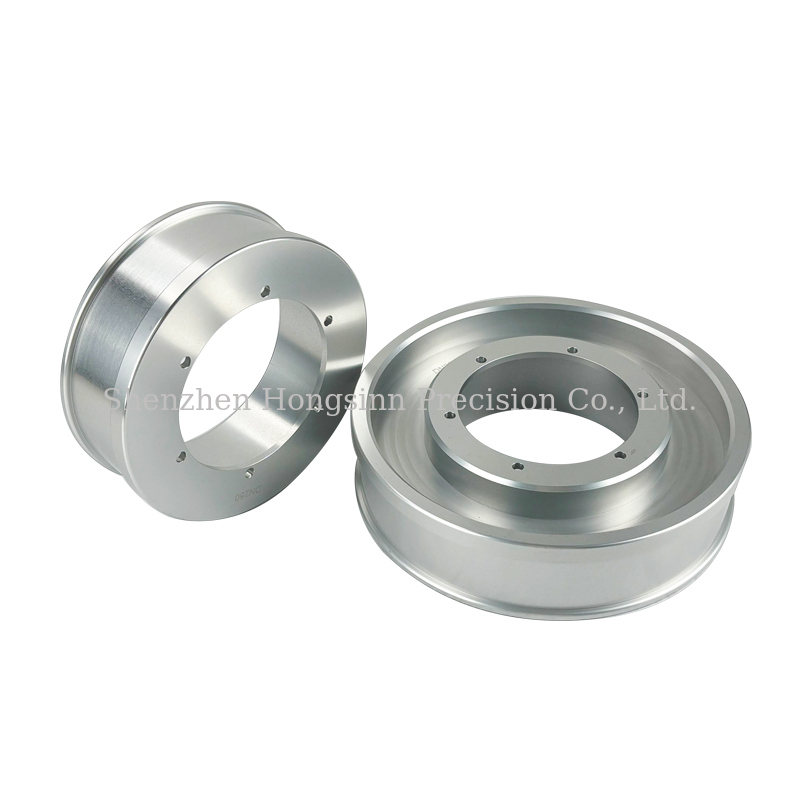

Custom Precision CNC-Machined Aluminum Alloy Ring Components

Product Overview

Custom precision CNC-machined aluminum alloy ring components are high-precision metal parts manufactured according to customer engineering drawings. These components feature structural elements such as central through-holes, annular end faces, stepped inner and outer diameters, and circular grooves. Depending on the specific design, they can be utilized for mechanical assembly, positioning, connection, or other structural applications within various types of equipment.

Shenzhen Hongsinn Precision specializes in the OEM/ODM manufacturing of precision, non-standard components. Based on 2D engineering drawings, 3D CAD models, or qualified samples provided by the client, we evaluate the optimal CNC processes—such as turning, milling, and drilling—to deliver comprehensive manufacturing solutions, ranging from prototype development and small-batch trial production to full-scale mass production.

For components featuring large-diameter internal bores, multi-stepped annular profiles, or end faces at varying heights, we develop tailored machining and inspection protocols to meet specific requirements regarding material, dimensional tolerances, roundness, concentricity, end-face flatness, and surface roughness.

Technical Specifications

Product Features

1. Precision CNC-Machined Aluminum Rings

The main body, inner bore, outer diameter, and end-face structures are manufactured using precise CNC machining processes. Critical dimensions are controlled in strict accordance with customer engineering drawings and specified tolerances.

2. Precision Machining of Inner and Outer Diameters

We offer precision machining for various inner and outer diameters, as well as annular mating surfaces, ensuring the parts meet assembly requirements for integration with other mechanical components.

3. Multi-Level Annular Step Structures

Custom machining is available for complex features—such as multi-level steps, recessed tiers, and transitional profiles—to satisfy specific requirements for positioning, support, and structural fit.

4. Annular Grooves and End-Face Machining

We can machine annular grooves, stepped end faces, and other specified profiles based on your product design. The width, depth, and positioning of all grooves are executed precisely according to the engineering drawings.

5. Dimensional Accuracy and Surface Quality Control

Depending on the product’s functional and technical specifications, we perform rigorous inspections for parameters such as inner/outer diameter, roundness, concentricity, end-face flatness, and surface roughness.

6. OEM/ODM Customization Based on Drawings

We support custom manufacturing based on customer-provided 2D engineering drawings, 3D CAD files, or qualified samples. We evaluate the optimal production strategy by considering factors such as material, required machining precision, surface treatment, and order quantity.

Scope of Application

1. Automation Equipment

Can be used as annular mounting components, positioning rings, support rings, or other custom structural parts within automation equipment, depending on the specific configuration.

2. Precision Machinery

Suitable for mechanical components featuring annular mating surfaces, central openings, and multi-step profiles; specific applications should be determined based on the equipment design.

3. Tooling, Fixtures, and Positioning Mechanisms

Can be utilized in tooling, fixtures, positioning mechanisms, or equipment mounting structures, meeting specific requirements for inner/outer diameter fit and precise positioning.

4. Industrial Equipment Connection Components

Depending on the design, these can serve as annular connecting surfaces, support surfaces, or multi-step mating structures for industrial equipment. Actual load-bearing capacity must be verified based on the material and design specifications.

5. OEM/ODM Precision Parts Projects

Suitable for prototype development, small-batch trial production, and mass production projects for equipment manufacturers, industrial automation firms, mechanical system integrators, and purchasers of precision components.

Hongsinn Precision Manufacturing Advantages

• Established in 2010, with over 15 years of experience in precision machining
• ISO 9001:2015 Quality Management System certified
• ISO 14001:2015 Environmental Management System certified
• Equipped with the AFMING GMU-800 EVO 5-axis machining center
• Extensive inventory of CNC lathes, turn-mill centers, and machining centers
• Inspection using Zeiss CONTURA Coordinate Measuring Machines (CMM)
• Supports rapid prototyping, as well as small-batch and high-volume production
• Products exported to markets in Europe, the US, Germany, Japan, Canada, and Southeast Asia

Frequently Asked Questions

• 1. Are you a trade company or manufacturer?

  We are a manufacturer with more than 14 years of experience in CNC machining and sheet metal fabrication.

• 2. Can you protect my business? Will my drawing be safe after you get it?

  Yes, we can sign the NDA before you send the drawing.

• 3. Available for customized design drawings?

  Yes, we accept CAD, STEP, IGS, PDF, Solidwork, etc.

• 4. Do you provide samples?

  Yes, there is a sample charge, which can be refunded when you place the order.

• 5. How soon can I get your quotation?

  Within 12 hours.

• 6. What's the lead time?

  5-25 working days, based on order quantity.
