Custom 5 Axis CNC Machined Precision Aluminum Structural Components

5-Axis CNC Precision-Machined Complex Aluminum Structural Components

Product Overview

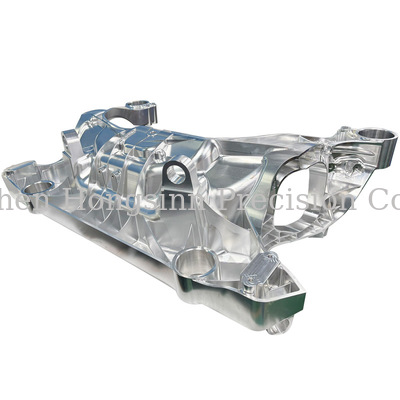

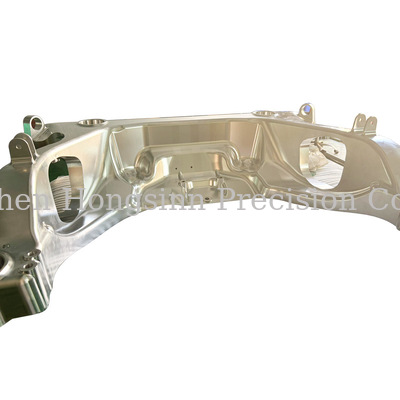

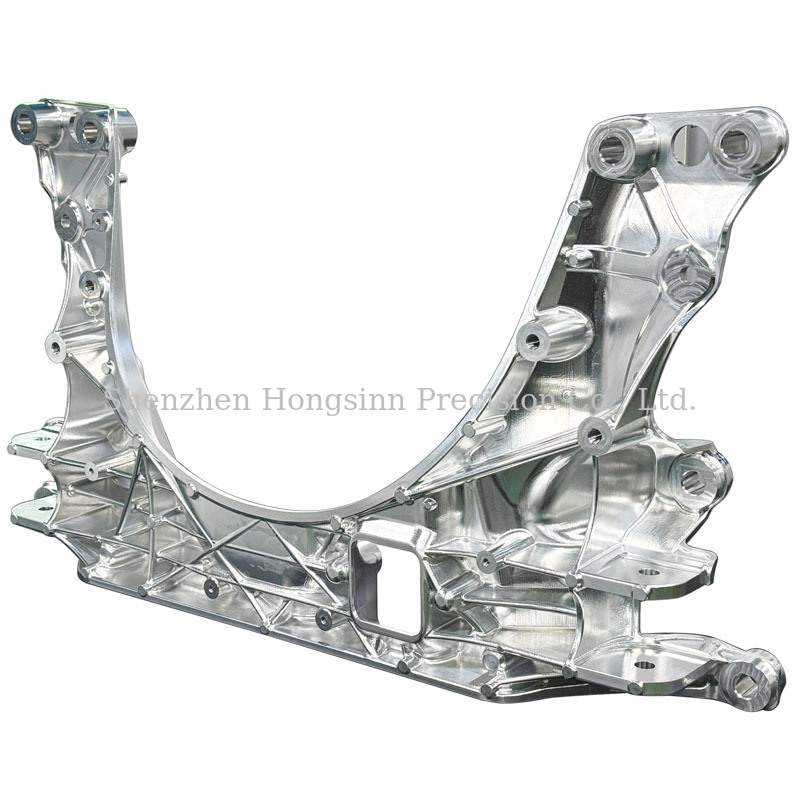

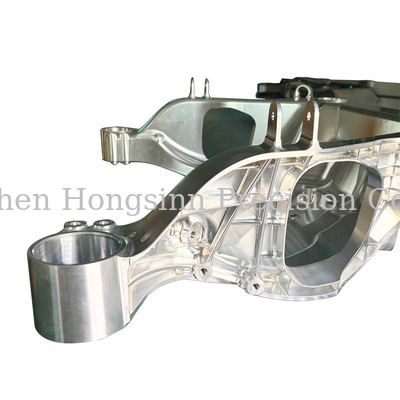

5-Axis CNC precision-machined complex aluminum structural components are custom-engineered metal parts designed for precision machinery, industrial equipment, and specialized machinery projects. These components feature complex 3D surfaces, curved main bodies, multiple mounting interfaces, reinforcing ribs, and holes oriented in various directions—making them ideal for applications that demand high geometric complexity, precise dimensional accuracy, and specific assembly requirements.

Hongsinn specializes in the OEM/ODM manufacturing of precision, non-standard components. Based on 2D engineering drawings, 3D CAD models, or qualified samples provided by the client, we evaluate the optimal manufacturing approach—utilizing 5-axis CNC machining, CNC milling, drilling, tapping, and other relevant processes—to deliver comprehensive solutions, ranging from design verification and prototype development to small-batch pilot runs and full-scale mass production.

For parts involving complex surfaces, multi-directional mounting holes, and reinforcing rib structures, we develop tailored manufacturing processes that account for the component's geometry, material properties, machining accessibility, and tolerance specifications, ensuring that the final aluminum structural components meet all functional and assembly requirements.

Product Features

1. 5-Axis CNC Machining for Complex Surfaces

For aluminum alloy parts featuring multi-directional surfaces, curved contours, and complex spatial structures, we evaluate 5-axis CNC machining strategies based on your technical drawings. This ensures the capability to machine from various angles while optimizing tool accessibility and work-holding methods.

2. Multi-Directional Holes and Mounting Interfaces

The product incorporates mounting holes and connection interfaces distributed across various sections. We machine these features—including hole diameters, spacing, positional tolerances, and mating dimensions—in strict accordance with your engineering drawings to meet equipment installation and mechanical connection requirements.

3. Structural Design: Reinforcement Ribs and Lightweighting

The design can integrate features such as reinforcement ribs, localized thin-wall sections, and custom-contoured profiles to achieve an optimal balance between weight and rigidity. The final structural performance is verified based on the specific material grade, wall thickness, applied loads, and operating environment.

4. Multi-Sided Precision Machining

For parts requiring machining on multiple faces, we assess the use of 5-axis simultaneous machining, multi-axis CNC processes, or other appropriate techniques to accommodate complex contours and multi-directional features.

5. Aluminum Alloy Customization

We evaluate the most suitable aluminum alloy—such as the 6061, 6082, or 7075 series—based on your requirements for weight, strength, machinability, and the intended operating environment. The final material grade is determined according to your technical drawings, performance specifications, and project requirements.

6. Optional Surface Treatments

Depending on the material and application, we offer various surface treatment options, including deburring, mechanical grinding, polishing, sandblasting, and anodizing. The specific treatment method, color, and technical standards are confirmed based on your requirements.

Custom Machining and Quotations

If you are looking for 5-axis CNC aluminum machining, the production of complex curved aluminum structural components, or the manufacturing of precision aluminum parts, please contact Hongxin Precision.

To facilitate the evaluation of machining strategies and the preparation of quotations, please provide the following information:

2D engineering drawings or 3D CAD models

Aluminum alloy grade and performance requirements

Overall product dimensions, wall thickness, and rib dimensions

Critical hole locations, mounting interfaces, and assembly requirements

Tolerances for critical dimensions and geometric tolerances

Surface roughness specifications and surface treatment requirements

Sample quantities and projected production volume

Special inspection requirements and target delivery dates

Based on the product structure, material, required machining precision, and order quantity, we will assess the most suitable CNC machining processes and develop a customized production solution for you.

Product Advantages

• Strong OEM Customization Capabilities
  Supports customized production based on customer drawings, samples, and design schemes.
• Extensive Precision Machining Experience
  Years of CNC machining experience, meeting the manufacturing needs of complex mechanical parts.
• Advanced Equipment Ensures Quality
  Equipped with CNC machining centers, 5-axis machining centers, and high-precision testing equipment.
• Rapid Response to Global Customers
  Supports rapid quotation, sample verification, and bulk supply.
• Stable Quality Control
  Strictly implements the ISO 9001 quality management system to ensure product reliability.

FAQ:

1. Are you a trade company or manufacturer?

   We are a manufacturer with more than 14 years of experience in CNC machining and sheet metal fabrication.

2. Can you protective my business, will my drawing be safe after you get it?

   Yes, we can sign the NDA before you send the drawing.

3. Available for customized design drawings?

   Yes, CAD, STEP, IGS, PDF, Solidwork, etc.

4. Do you provide samples?

   Yes, there is a sample charge, the sample charge can be refunded when place the order.

5. How soon can I get your quotation?

   Within 12 hours.

6. What's the lead time?

   5-25 working days, based on order quantity.
