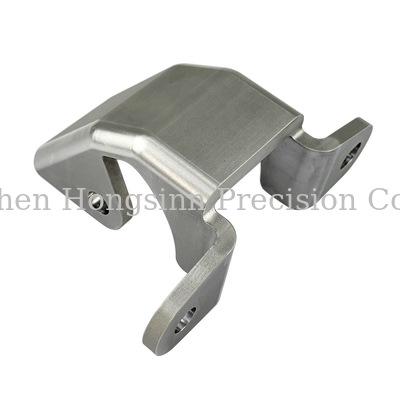

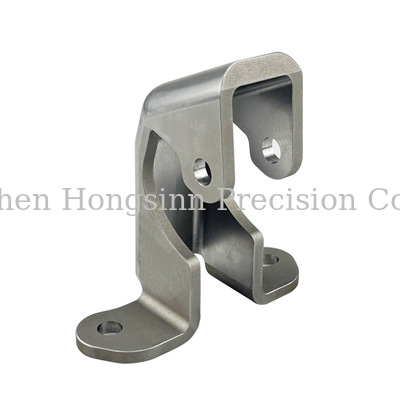

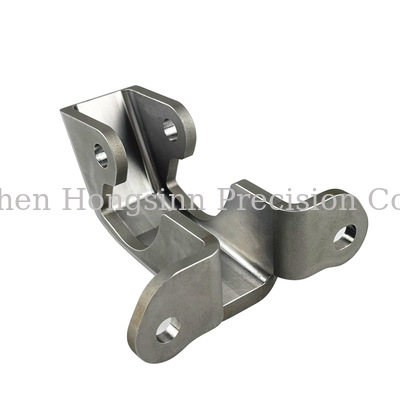

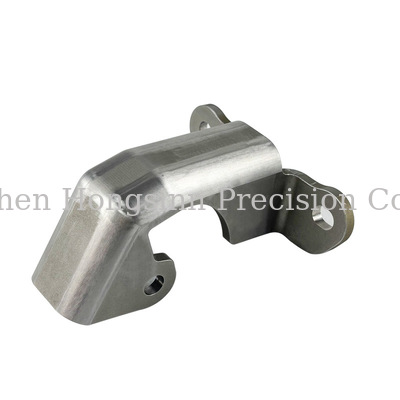

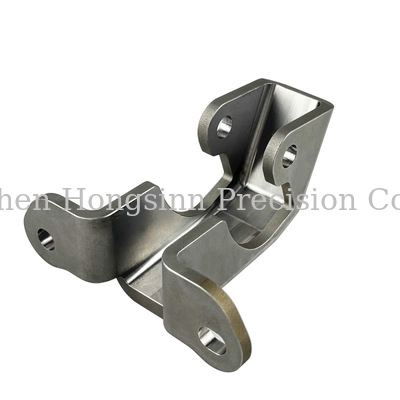

Custom CNC Machined Metal Brackets with U-Shaped Channel Design and Complex Contours for Precision Mounting Brackets

Custom CNC precision metal mounting brackets are non-standard metal components designed for use in industrial equipment, mechanical structures, and automation systems. Featuring a U-shaped channel design, these components incorporate a central groove, vertical side walls, multiple mounting holes, and custom-shaped connecting tabs—all of which can be tailored to specific equipment configurations and assembly requirements.

Hongsinn specializes in the OEM/ODM manufacturing of precision, non-standard components. Based on 2D engineering drawings, 3D CAD models, or qualified samples provided by the client, we evaluate and apply processes such as CNC milling, drilling, and contour machining to ensure that dimensions, hole placements, and assembly structures meet the precise requirements of each project.

For metal brackets featuring complex contours, multi-directional hole patterns, or specialized mounting interfaces, we develop customized processing solutions—accounting for material specifications, structural characteristics, dimensional tolerances, and order volume—to support everything from prototype development and small-batch trial runs to full-scale mass production.

1. U-Shaped Channel Design The product features a longitudinal channel in the center with vertical side walls. The depth, width, and profile of this channel can be customized to meet specific requirements for support, connection, or structural mounting.
2. Precision Multi-Hole Machining The bracket is designed with various circular and slotted holes. Hole diameters, spacing, positioning, and mating dimensions can be machined according to your technical drawings to facilitate bolting, assembly alignment, and structural integration.
3. Complex Contours and Radiused Corners The product incorporates irregular external contours, smooth radiused transitions, and connection tabs of varying heights. We can utilize CNC milling, contour machining, and other appropriate processes to achieve your specific design requirements.
4. Wide Range of Metal Materials We can select the optimal metal—such as aluminum alloy, stainless steel, or other metals—based on your requirements for strength, weight, corrosion resistance, and the intended operating environment. The specific material grade will be determined according to your technical drawings and project specifications.
5. Customizable Surface Finishes Depending on the material, operating environment, and aesthetic requirements, we offer various surface treatments, including deburring, mechanical grinding, polishing, and anodizing. The chosen process will be matched to the material type and the functional requirements of the part.
6. OEM/ODM Manufacturing Based on Technical Specifications We provide custom manufacturing services based on your 2D engineering drawings, 3D CAD files, or approved samples. We can support your project through every stage, from prototype development and small-batch trial runs to full-scale mass production.

• Strong OEM Customization Capabilities Supports customized production based on customer drawings, samples, and design schemes.
• Extensive Precision Machining Experience Years of CNC machining experience, meeting the manufacturing needs of complex mechanical parts.
• Advanced Equipment Ensures Quality Equipped with CNC machining centers, 5-axis machining centers, and high-precision testing equipment.
• Rapid Response to Global Customers Supports rapid quotation, sample verification, and bulk supply.
• Stable Quality Control Strictly implements the ISO 9001 quality management system to ensure product reliability.
