Custom CNC Aluminum Flange Components | Hongsinn

Product Features

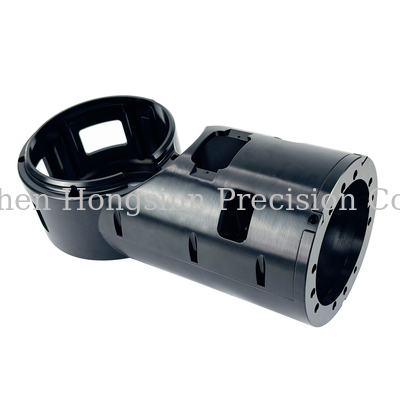

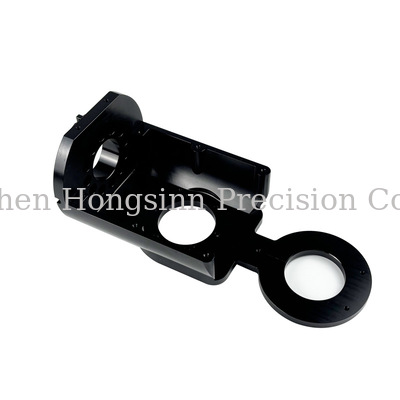

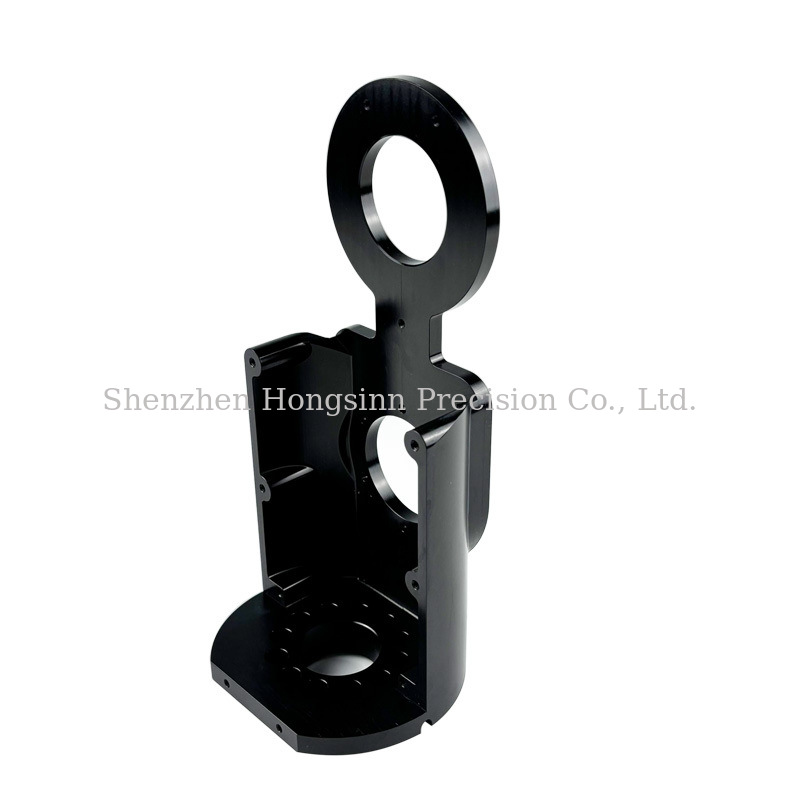

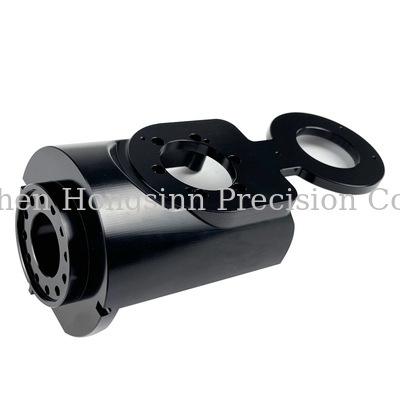

1. Cylindrical Body with Multi-Interface Structure

The main body features a cylindrical design integrated with connection interfaces at various positions. Mounting holes, mating surfaces, positioning features, and other functional elements can be machined according to technical drawings to meet the structural design and assembly requirements of customized equipment.

2. Precision CNC Milling and Drilling

For components such as flanges, connecting plates, and parts with multi-directional hole patterns, we evaluate optimal CNC milling, drilling, tapping, and contouring processes. Critical dimensions—including hole diameters, hole spacing, end-face specifications, and mating tolerances—are strictly controlled in accordance with customer drawings and agreed-upon inspection standards.

3. Black Anodized Surface Finish

The product undergoes a black anodizing process, which creates an oxide layer on the aluminum alloy surface. This finish provides a black appearance and offers a degree of wear resistance, making it ideal for parts that require specific aesthetic qualities and durability.

Anodizing type, coating thickness, color consistency, and corrosion resistance can be tailored to meet customer technical specifications. For precision mating surfaces, threaded holes, and assembly interfaces, we implement precise dimension control and necessary masking techniques to account for the thickness of the oxide layer.

4. Lightweight Aluminum Alloy Design

We select appropriate materials—such as 6061, 6082, or 7075 series aluminum alloys—based on the part’s structural strength, weight requirements, machinability, and surface finish specifications. The final material grade is determined by the customer’s drawings and project requirements.

5. Multi-Process Integrated Manufacturing

Depending on the part’s structure, we utilize a combination of CNC milling, drilling, tapping, and other relevant machining processes. For complex geometries requiring multi-directional access, we employ multi-axis CNC machining to ensure feasibility, dimensional accuracy, and production efficiency.

6. OEM/ODM Customization Based on Drawings

We offer custom manufacturing services based on customer-provided 2D engineering drawings, 3D CAD files, or qualified samples. We support the entire product lifecycle, from initial development and prototyping to full-scale mass production.

Scope of Application

Industrial Automation Equipment

Suitable for custom aluminum alloy components—such as mounting brackets, equipment connectors, and support structures—designed to accommodate specific equipment configurations requiring multiple attachment points.

Precision Machinery

Ideal for custom mechanical components featuring cylindrical bodies, multi-hole flanges, complex-shaped connecting plates, or other elements requiring high-precision assembly.

Equipment Connection and Mounting Systems

Designed for structural components that require flange connections, bolted joints, or multi-point positioning. Specific connection methods and load-bearing capacities should be verified against engineering drawings and actual operating conditions.

Testing Instruments and Specialized Equipment

Suitable for mounting brackets, structural connectors, and other precision aluminum alloy components that require a black surface finish.

OEM/ODM Custom Projects

Applicable to new product R&D, engineering prototype validation, non-standard equipment integration, replacement part development, and batch manufacturing projects.

Product Advantages

• Strong OEM Customization Capabilities
  Supports customized production based on customer drawings, samples, and design schemes.
• Extensive Precision Machining Experience
  Years of CNC machining experience, meeting the manufacturing needs of complex mechanical parts.
• Advanced Equipment Ensures Quality
  Equipped with CNC machining centers, 5-axis machining centers, and high-precision testing equipment.
• Rapid Response to Global Customers
  Supports rapid quotation, sample verification, and bulk supply.
• Stable Quality Control
  Strictly implements the ISO 9001 quality management system to ensure product reliability.

FAQ:

1. Are you a trade company or manufacturer?

   We are a manufacturer with more than 14 years of experience in CNC machining and sheet metal fabrication.

2. Can you protective my business, will my drawing be safe after you get it?

   Yes, we can sign the NDA before you send the drawing.

3. Available for customized design drawings?

   Yes, CAD, STEP, IGS, PDF, Solidwork, etc.

4. Do you provide samples?

   Yes, there is a sample charge, the sample charge can be refunded when place the order.

5. How soon can I get your quotation?

   Within 12 hours.

6. What's the lead time?

   5-25 working days, based on order quantity.
