5 Axis CNC Machined Aluminum Parts | Custom Components

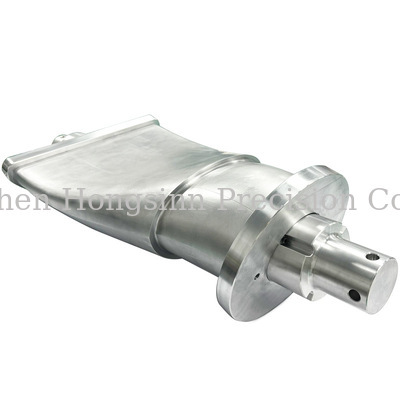

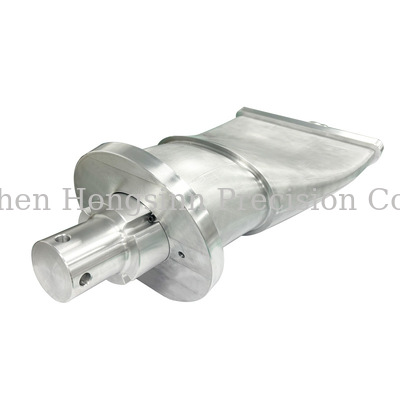

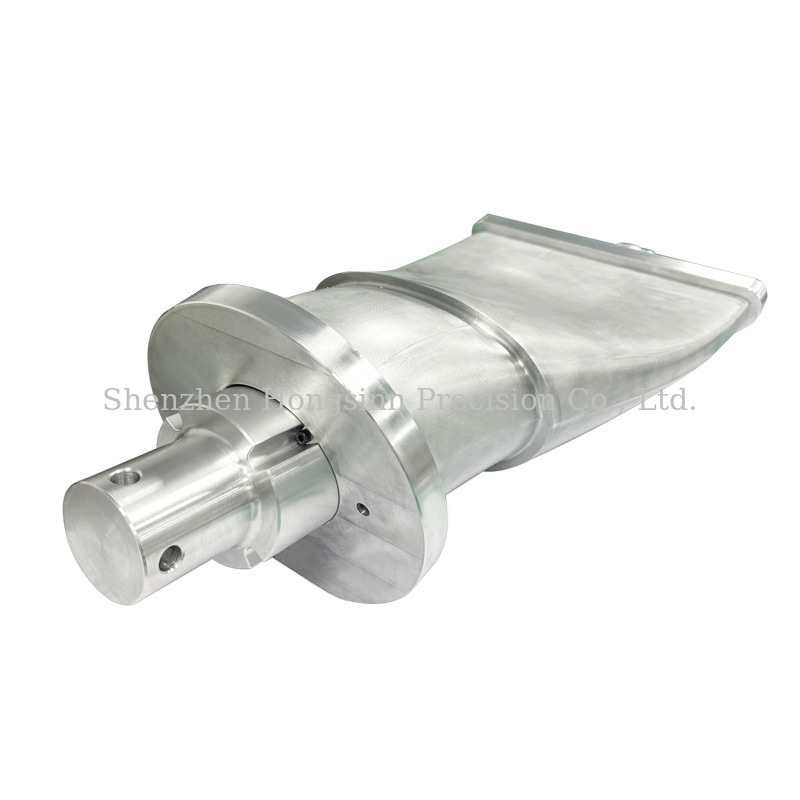

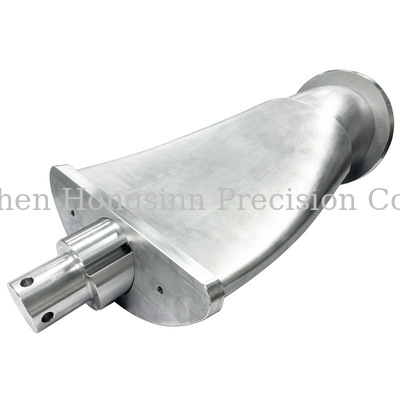

Custom 5-Axis CNC Machined Aluminum Alloy Components with Complex Geometries

Product Overview

These custom 5-axis CNC machined aluminum alloy components with complex geometries are non-standard metal parts designed for industrial equipment, precision machinery, and OEM/ODM projects. Designs can incorporate complex curved surfaces, elongated bodies, stepped shaft ends, flange connections, and multi-directional hole patterns to meet specific assembly and structural requirements.

Hongsinn Precision offers custom CNC aluminum machining services. We evaluate the appropriate processes—such as 5-axis CNC milling, CNC turning, and drilling—based on customer-provided 2D engineering drawings, 3D CAD models, or qualified samples.

For parts featuring complex shapes and multi-directional machining requirements, we develop tailored machining strategies based on the specific structure, dimensional tolerances, work-holding conditions, and order volume, supporting everything from prototype development and small-batch pilot runs to full-scale mass production.

Product Features

1. Machining of Complex, Irregular Structures

The product can be machined to incorporate arc profiles, complex curved surfaces, stepped structures, mounting flanges, and other intricate geometric features according to design specifications. For areas requiring multi-directional tool access, 5-axis CNC machining solutions can be evaluated.

2. Stepped Shaft Ends and Precision Hole Features

Dimensional control is applied to shaft ends, locating holes, connection holes, and other assembly features based on engineering drawings. Technical requirements—such as tolerances, coaxiality, positional accuracy, and surface roughness—are clearly defined for shaft diameters and hole locations requiring specific fits.

3. Lightweight Aluminum Alloy Structures

Suitable aluminum alloy grades (e.g., 6061, 6082, or 7075 series) are selected based on factors such as strength, weight, machinability, and the operating environment. The specific material used is confirmed according to customer drawings and project requirements.

4. Multi-Process CNC Manufacturing

Depending on the product structure and machining feasibility, a combination of processes—including 5-axis CNC milling, CNC turning, drilling, and tapping—is employed to produce features such as multi-directional holes, shaft sections, mating surfaces, and complex profiles.

5. Dimensional and Assembly Control

Key inspection parameters are established based on customer drawings, focusing on shaft diameters, hole diameters, flange mounting dimensions, connection hole locations, and relevant mating features. Actual tolerances and inspection methods are determined by project technical specifications.

6. OEM/ODM Custom Production

We support manufacturing based on drawings, sample development, and the production of custom structural components. Customers may provide 2D engineering drawings, 3D CAD files, or qualified samples to facilitate feasibility analysis, process planning, and quotation assessment.

Scope of Application

Industrial Automation Equipment

Suitable for custom mounting components, equipment connectors, positioning structures, and other complex aluminum alloy mechanical parts; actual usage depends on the specific equipment design.

Precision Machinery

Suitable for custom structural parts and mechanical assemblies featuring stepped shaft ends, irregular profiles, connecting flanges, and multi-directional hole patterns.

Transmission and Motion Mechanisms

For parts designed as shafts or motion mechanism components, suitability for transmission or positioning systems can be evaluated based on working loads, rotational speeds, fit tolerances, and lubrication requirements.

Robotics and Equipment Structural Components

Can be used for robot mounting components, lightweight connecting structures, and specialized equipment parts based on design specifications; specific rigidity, load-bearing, and assembly requirements must be verified.

OEM/ODM Custom Projects

Suitable for industrial product development, engineering sample validation, non-standard equipment components, replacement part development, and mass production projects.

The above lists potential application areas. Actual equipment usage must be confirmed based on product drawings, assembly relationships, and customer technical requirements.

Product Advantages

• Strong OEM Customization Capabilities
  Supports customized production based on customer drawings, samples, and design schemes.
• Extensive Precision Machining Experience
  Years of CNC machining experience, meeting the manufacturing needs of complex mechanical parts.
• Advanced Equipment Ensures Quality
  Equipped with CNC machining centers, 5-axis machining centers, and high-precision testing equipment.
• Rapid Response to Global Customers
  Supports rapid quotation, sample verification, and bulk supply.
• Stable Quality Control
  Strictly implements the ISO 9001 quality management system to ensure product reliability.
