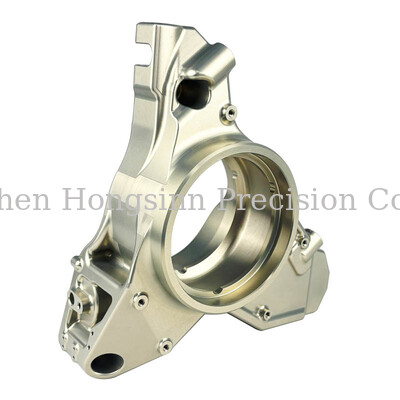

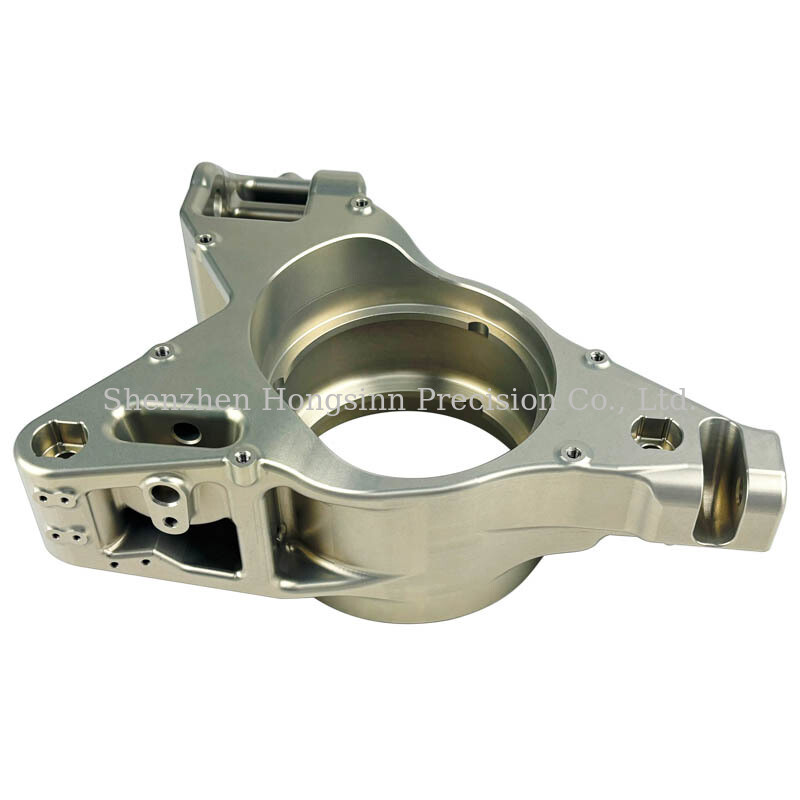

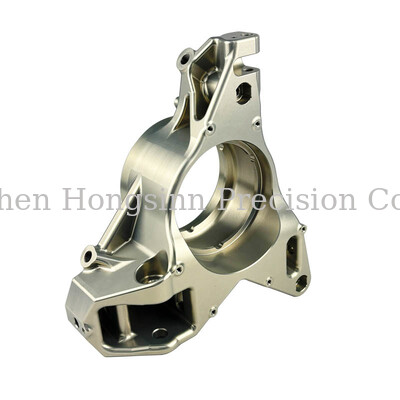

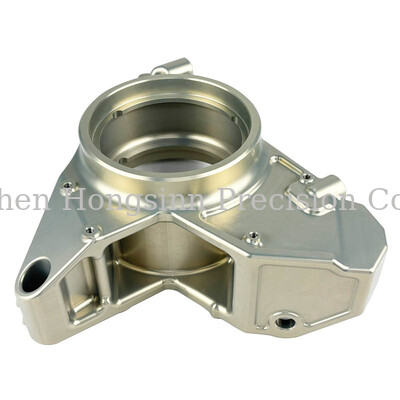

5-Axis CNC Machined Hard-Anodized Aluminum Alloy Parts

Product Overview

These 5-axis CNC machined, hard-anodized aluminum alloy parts are complex metal components designed for industrial equipment, precision machinery, and custom OEM projects. Featuring elements such as multi-directional mounting holes, central circular cavities, reinforcing ribs, positioning features, and intricate 3D contours, they are ideal for manufacturing projects with strict specifications regarding structural design, dimensional fit, surface wear resistance, and assembly requirements.

Hongsinn Precision offers custom CNC aluminum machining services. We evaluate manufacturing strategies based on 2D engineering drawings, 3D CAD models, or qualified samples, and—incorporating requirements for hard-anodized surface finishing—we determine the optimal material, machining process, and post-processing workflow.

We support projects ranging from prototype development and small-batch pilot runs to full-scale mass production. By evaluating factors such as part geometry, precision requirements, order volume, and quality standards, we provide OEM/ODM custom machining solutions to overseas equipment manufacturers and industrial component buyers.

Product Features

1. 5-Axis CNC Precision Machining

5-axis CNC machining solutions are evaluated based on product structure to handle multi-directional holes, complex curved surfaces, inclined planes, grooves, and 3D contours. Optimal machining datums, tool paths, and work-holding strategies are employed to meet the dimensional and assembly requirements specified in engineering drawings.

2. Hard Anodizing Surface Treatment

The product undergoes hard anodizing, creating a robust oxide layer on the aluminum alloy surface—ideal for parts requiring high wear resistance and surface durability.

Actual coating thickness, hardness, color, dimensional changes, and corrosion resistance depend on the material grade and process specifications; these are confirmed based on customer technical requirements. For precision holes, mating surfaces, and threaded areas, the impact of the oxide layer on final dimensions and assembly clearances is also evaluated.

3. Complex Structure and Multi-Hole Design

Features such as center holes, mounting holes, locating holes, threaded holes, localized grooves, reinforcing ribs, and other structural elements are machined according to drawings. Hole diameters, depths, spacing, positional accuracy, and geometric tolerances are determined by customer engineering drawings.

4. Aluminum Alloy Material Customization

Suitable aluminum alloys—such as the 6061, 6082, or 7075 series—are selected based on requirements for part strength, weight, machinability, and surface treatment. The final material grade is determined by the customer's specifications and project confirmation.

5. Precision Dimensions and Quality Control

Dimensional inspections are scheduled according to drawing requirements for critical features such as center holes, mounting datums, and connection holes. For hard-anodized parts, inspection standards account for dimensional changes resulting from the treatment process and specific assembly fit requirements.

6. OEM/ODM Manufacturing to Print

Custom machining evaluations are supported based on 2D engineering drawings, 3D CAD files, or qualified samples. Services range from prototype development and small-batch pilot runs to full-scale mass production, with specific capabilities and lead times determined during project evaluation.

The process value of hard anodizing

Hard anodizing is an aluminum alloy surface conversion treatment process that can be used to improve surface wear resistance and durability according to the use environment and technical specifications.

For complex CNC parts with center holes, mounting holes and precision mating surfaces, the surface treatment plan needs to take into account material grade, film thickness, critical dimensions and assembly requirements.

Surface wear resistance: Suitable for aluminum alloy parts with certain wear resistance requirements. The actual performance depends on the process and usage conditions.

Surface protection: The oxide layer can provide certain surface protection for the aluminum alloy substrate. The specific corrosion resistance needs to be evaluated in conjunction with the process specifications.

Dimensional control: Precision mating surfaces should consider oxide film growth and dimensional changes, and clarify requirements for masking, post-processing or dimensional compensation when necessary.

Process suitability: Feasible surface treatment solutions should be confirmed based on alloy grade, part geometry and customer quality requirements.

Product Advantages

• Strong OEM Customization Capabilities
  Supports customized production based on customer drawings, samples, and design schemes.
• Extensive Precision Machining Experience
  Years of CNC machining experience, meeting the manufacturing needs of complex mechanical parts.
• Advanced Equipment Ensures Quality
  Equipped with CNC machining centers, 5-axis machining centers, and high-precision testing equipment.
• Rapid Response to Global Customers
  Supports rapid quotation, sample verification, and bulk supply.
• Stable Quality Control
  Strictly implements the ISO 9001 quality management system to ensure product reliability.

FAQ:

1. Are you a trade company or manufacturer?

   We are a manufacturer with more than 14 years of experience in CNC machining and sheet metal fabrication.

2. Can you protective my business, will my drawing be safe after you get it?

   Yes, we can sign the NDA before you send the drawing.

3. Available for customized design drawings?

   Yes, CAD, STEP, IGS, PDF, Solidwork, etc.

4. Do you provide samples?

   Yes, there is a sample charge, the sample charge can be refunded when place the order.

5. How soon can I get your quotation?

   Within 12 hours.

6. What's the lead time?

   5-25 working days, based on order quantity.
