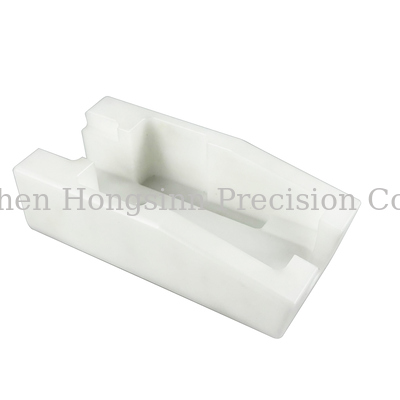

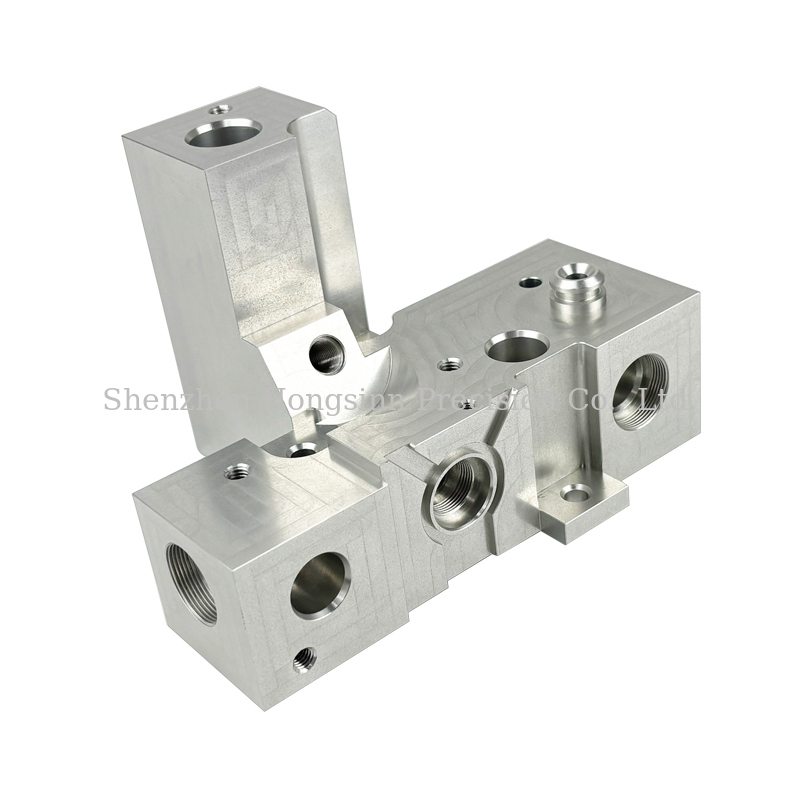

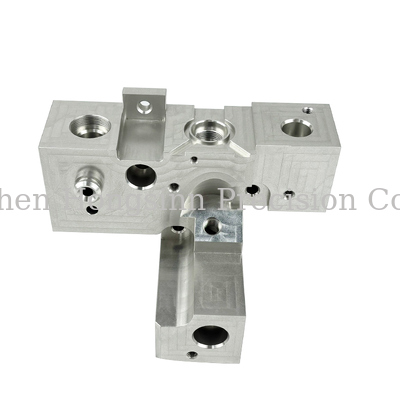

5 Axis CNC Milling Parts - Complex Multi Surface Precision Machined Components

5-Axis Simultaneous CNC Milling for Complex, Multi-Faceted Precision Parts

5-axis CNC milling is a key capability within Hongsinn’s precision CNC machining portfolio. It is ideal for manufacturing precision parts featuring complex curved surfaces, multi-angle geometries, and multiple machined faces—designs that are often difficult to execute using traditional workholding methods. Hongsinn operates 3-axis, 4-axis, and 5-axis machining centers—including the AFMING GMU-800 EVO 5-axis simultaneous machining center—allowing for the selection of the optimal machining strategy based on the specific product structure.

Hongsinn’s 5-axis CNC milling capabilities support a wide range of materials, including aluminum alloys, stainless steel, steel, titanium alloys, brass, and other engineering materials. Multi-axis simultaneous machining enables precise process planning for complex curved surfaces, inclined planes, angled holes, cavities, irregular profiles, and multi-faceted geometries. For complex parts, Hongsinn’s engineering team conducts Design for Manufacturability (DFM) analysis prior to production, evaluating machining datums, tool accessibility, workholding methods, and inspection strategies.

Product Applications and Engineering Capabilities

Our 5-axis machined parts are suitable for applications in semiconductor equipment, medical devices, automation systems, industrial robots, precision instruments, and complex mechanical assemblies. For projects ranging from design validation to mass production, Hongsinn provides support for prototyping, small-batch pilot runs, and full-scale production. We accept orders with a minimum quantity (MOQ) as low as one unit; specific lead times are determined based on product complexity, volume, and material requirements.

International Standards and Quality Documentation

To meet the needs of overseas clients, Hongsinn adheres to standards such as ISO, JIS, ANSI, DIN, ASTM, and GB. We provide comprehensive documentation upon request, including material certificates, heat treatment reports, coating reports, and dimensional inspection reports. Our inspection capabilities utilize advanced equipment, including Zeiss CONTURA 7/10/6 and Mitutoyo CMMs, Keyence automatic vision measuring systems, surface roughness testers, coating thickness gauges, hardness testers, and a wide range of precision measuring tools.

Product Advantages

• Strong OEM Customization Capabilities
  Supports customized production based on customer drawings, samples, and design schemes.
• Extensive Precision Machining Experience
  Years of CNC machining experience, meeting the manufacturing needs of complex mechanical parts.
• Advanced Equipment Ensures Quality
  Equipped with CNC machining centers, 5-axis machining centers, and high-precision testing equipment.
• Rapid Response to Global Customers
  Supports rapid quotation, sample verification, and bulk supply.
• Stable Quality Control
  Strictly implements the ISO 9001 quality management system to ensure product reliability.

FAQ:

1. Are you a trade company or manufacturer?

   We are a manufacturer with more than 14 years of experience in CNC machining and sheet metal fabrication.

2. Can you protective my business, will my drawing be safe after you get it?

   Yes, we can sign the NDA before you send the drawing.

3. Available for customized design drawings?

   Yes, CAD, STEP, IGS, PDF, Solidwork, etc.

4. Do you provide samples?

   Yes, there is a sample charge, the sample charge can be refunded when place the order.

5. How soon can I get your quotation?

   Within 12 hours.

6. What's the lead time?

   5-25 working days, based on order quantity.
