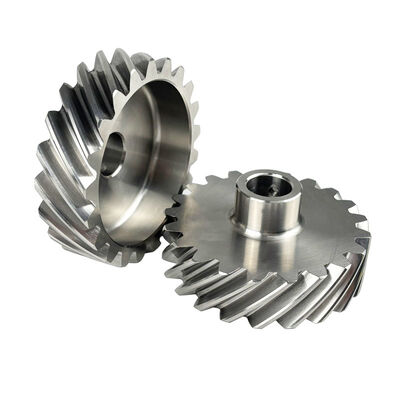

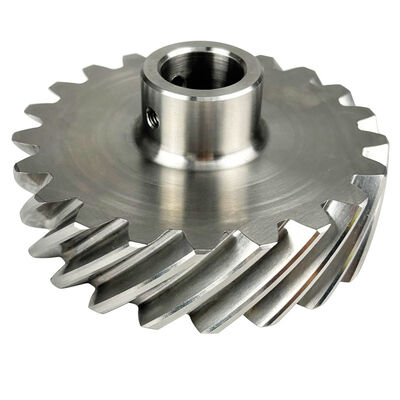

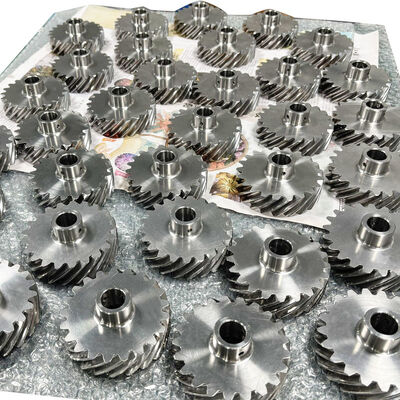

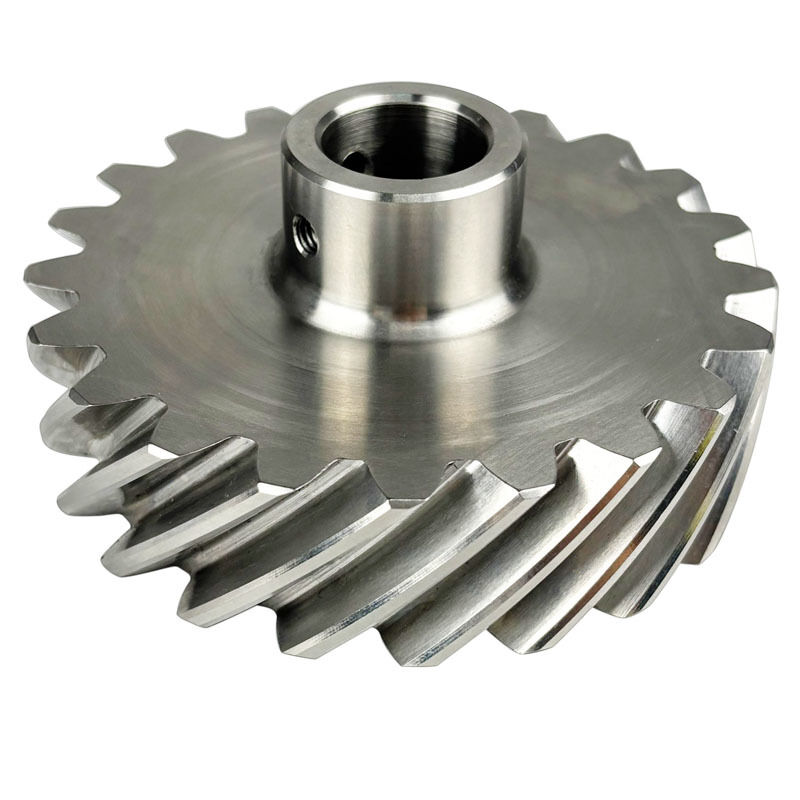

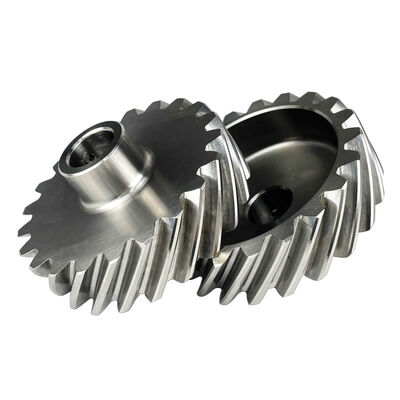

Custom High-Precision CNC Helical Gears for Low-Noise Industrial Transmission

Brand Name:	Hongsinn
Model Number:	HS-344
MOQ:	1,Piece/Pieces
Price:	USD,0.78-7.59,Piece/Pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000,Piece/Pieces,Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

ISO9001:2015 ISO14001:2015

Product Name:

Machining Parts

Surface Treatment:

Anodizing,polishing,chrome As Your Request

Service:

OEM /ODM CNC Machining

Apply To:

Any OEM Cnc Machining Parts

Sample:

Need To Pay Sample Fee

Tolerance:

+/-0.01-0.005mm

Process:

Cnc Machining+deburrs

Feature:

Durable And High Precision

Color:

Customized Color

Delivery Time:

3-7 Days For Sample Order, 10-15 Days For Bulk Order After

Packaging Details:

EPE foam inside and Carton outside or EPE foam inside and Wooden outside

Supply Ability:

5000,Piece/Pieces,Month

Product Description

Precision CNC Machined Helical Gears | Custom Gear Manufacturing Services

Product Overview

Hongxin Precision specializes in the custom development and mass production of high-end, precision CNC gears, offering comprehensive one-stop services from structural design and process optimization to large-scale manufacturing. Our helical gear products are engineered for applications demanding high efficiency, low noise, and extended service life. Widely utilized in automation equipment, precision reducers, and various high-end mechanical transmission systems, our gears empower clients to achieve more stable and higher-performance power output.

Core Technical Advantages

Smooth Transmission and Low-Noise Performance: By optimizing the helix angle and tooth surface contact patterns, our helical gears achieve progressive engagement during meshing, effectively reducing impact loads and vibration amplitudes. Compared to traditional spur gears, they significantly reduce operational noise while enhancing overall smoothness and service life.
High-Precision Tooth Profile Machining Capabilities: Leveraging multi-axis simultaneous CNC machining centers and precision gear processing equipment, we maintain strict control over errors in tooth profile, pitch, and helix direction. Critical mating features are held to micron-level precision, ensuring exceptional stability and transmission accuracy even under high-speed operating conditions.
Premium Materials and Surface Hardening Processes: We support processing of high-performance materials including 42CrMo alloy steel, stainless steel (SUS304/316), and engineering plastics. Based on specific operating conditions, we offer various heat treatment solutions to significantly enhance tooth surface hardness, wear resistance, and fatigue strength.
Flexible and Efficient Customization Capabilities: We offer flexible customization of key parameters including tooth count, module, pressure angle, and face width to meet diverse transmission requirements. We support various structural designs, from hubbed gears to integrated gear-shaft assemblies.

Technical Specifications

Machining Equipment	15 CNC Tapping Center, 18 CNC Lathes, 25 auto lathe, 4 MAZAK five axis CNC, etc.
Processing	Turning, Milling, Drilling, Tapping, Knurling, Wire EDM, Grinding, Engraving, Knurling, etc.
Tolerance	+/-0.005mm
Material Workable	Copper, Steel, Aluminum, Brass, Stainless Steel, Titanium, Plastics (PEEK, ABS, Acrylic, Delrin, PP, PMMA, PC, POM, polyethylene, PVC, Nylon), Organic Glass, Carbon Fiber, Wood, etc. Other materials upon request.
Surface Treatment	Nickel Plating, Anodizing, Chrome Plating, Brushing, Polishing, Blacken, Powder coating, Sandblasting, de-burring, Electrophoresis, Passivation, etc.
Drawing Format	JPEG, PDF, DWG, DXF, IGS, STEP, CAD
MOQ	No MOQ Required, 1 PC is acceptable
Lead Time	1-30 days according to order requirements
Quality System	100% inspection before shipment (CMM, Projector, Gauge and other inspection tools)
Size	Customization
Standard	OEM/ODM
FOB Port	Shenzhen, China
Payment	50% T/T in advance, 50% before shipment. Accept T/T, L/C, Escrow, PayPal, Western Union
Packing	Carton box, wooden case, pallet, etc.
Shipping	By sea, by air, by DHL, UPS, FedEx, TNT or EMS, etc.

Product Images

Quality Assurance & After-Sales Service

All our CNC machined parts come with complete inspection reports and material certifications. We offer comprehensive after-sales service, including technical support, rework when necessary, and timely handling of any quality issues.

We use standard export wooden crates or custom packaging according to your requirements, and support air, sea, or express shipping. If you have any questions about the products, please feel free to contact our technical team.

Frequently Asked Questions

Are you a trade company or manufacturer?

We are a manufacturer with more than 14 years of experience in CNC machining and sheet metal fabrication.

Can you protect my business? Will my drawing be safe after you get it?

Yes, we can sign the NDA before you send the drawing.

Available for customized design drawings?

Yes, we accept CAD, STEP, IGS, PDF, Solidwork, etc.

Do you provide samples?

Yes, there is a sample charge, which can be refunded when you place the order.

How soon can I get your quotation?

Within 12 hours.

What's the lead time?

5-25 working days, based on order quantity.
