Custom CNC Machined Aluminum Fixture Plate with Precision Positioning Slots
| Brand Name: | Hongsinn |
| Model Number: | HS-344 |
| MOQ: | 1,Piece/Pieces |
| Price: | USD,0.48-6.59,Piece/Pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union, |
| Supply Ability: | 5000,Piece/Pieces,Month |
CNC machined aluminum fixture plate
,precision positioning slot fixture plate
,custom CNC milling fixture plate
Precision CNC-Machined Aluminum Alloy Multi-Station Positioning Fixture Plate
1. Product Introduction

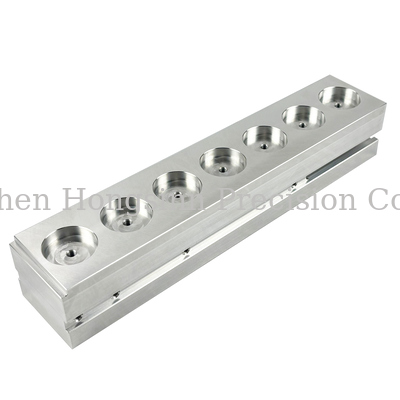

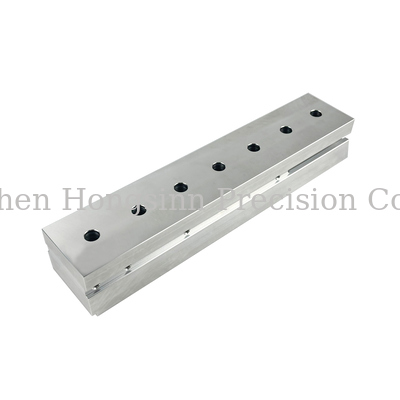

This is a custom-engineered, precision aluminum alloy positioning fixture plate, manufactured via CNC machining. It is primarily designed for the positioning, limiting, and securing of components within industrial equipment, automated production lines, and precision assembly systems.

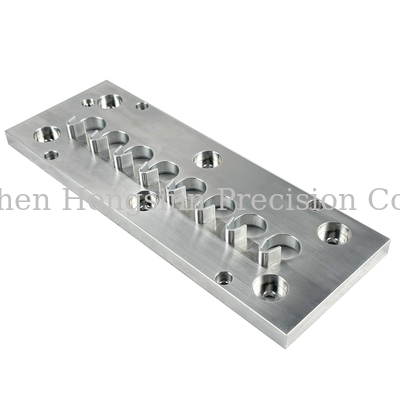

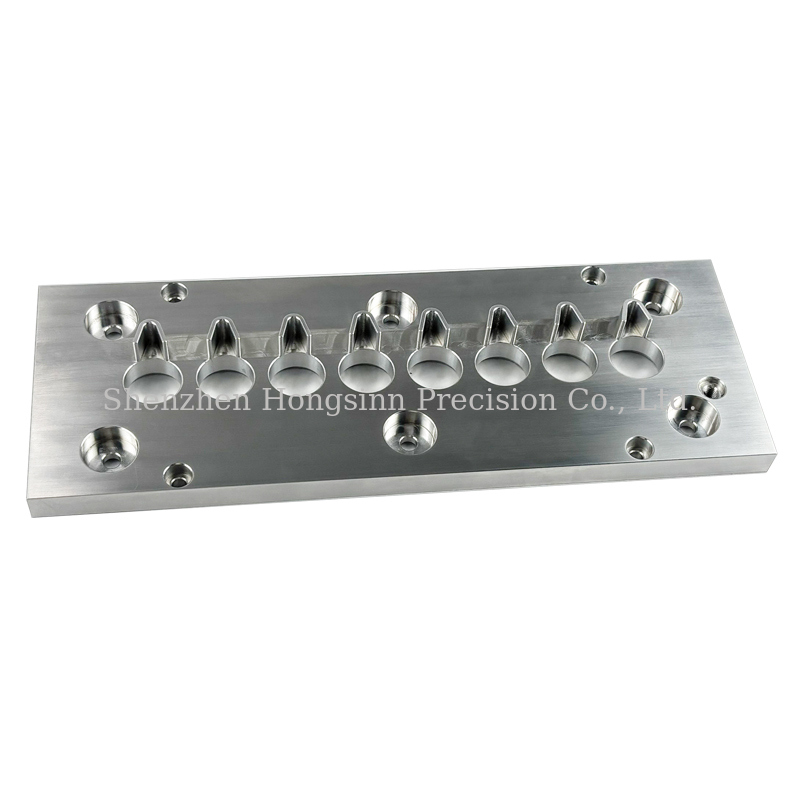

Featuring a rectangular plate design, the surface incorporates a variety of precision positioning slots, counterbored holes, mounting holes, and complex contoured features, enabling the precise positioning and fixation of parts across multiple stations according to specific assembly requirements.
The product is fabricated using processes such as CNC milling, precision drilling, counterboring, and contour machining, ensuring the accurate creation of intricate slots, holes, and multi-station configurations.
Shenzhen Hongsinn Precision offers custom manufacturing services for a wide range of precision aluminum alloy fixture plates, positioning jigs, equipment mounting plates, and non-standard machined components, based on client-provided 2D engineering drawings, 3D models, or physical samples.
Technical Specifications
| Machining Equipment | 15 CNC Tapping Center, 18 CNC Lathes, 25 auto lathe, 4 MAZAK five axis CNC, etc. |
| Processing | Turning, Milling, Drilling, Tapping, Knurling, Wire EDM, Grinding, Engraving, Knurling, etc. |
| Tolerance | +/-0.005mm |
| Material Workable | Copper, Steel, Aluminum, Brass, Stainless Steel, Titanium, Plastics (PEEK, ABS, Acrylic, Delrin, PP, PMMA, PC, POM, polyethylene, PVC, Nylon), Organic Glass, Carbon Fiber, Wood, etc. Other materials upon request. |
| Surface Treatment | Nickel Plating, Anodizing, Chrome Plating, Brushing, Polishing, Blacken, Powder coating, Sandblasting, de-burring, Electrophoresis, Passivation, etc. |
| Drawing Format | JPEG, PDF, DWG, DXF, IGS, STEP, CAD |
| MOQ | No MOQ Required, 1 PC is acceptable |
| Lead Time | 1-30 days according to order requirements |
| Quality System | 100% inspection before shipment (CMM, Projector, Gauge and other inspection tools) |
| Size | Customization |
| Standard | OEM/ODM |
| FOB Port | Shenzhen, China |
| Payment | 50% T/T in advance, 50% before shipment. Accept T/T, L/C, Escrow, PayPal, Western Union |
| Packing | Carton box, wooden case, pallet, etc. |
| Shipping | By sea, by air, by DHL, UPS, FedEx, TNT or EMS, etc. |
Product Machining Features and Advantages
Multi-Station Precision Positioning Design

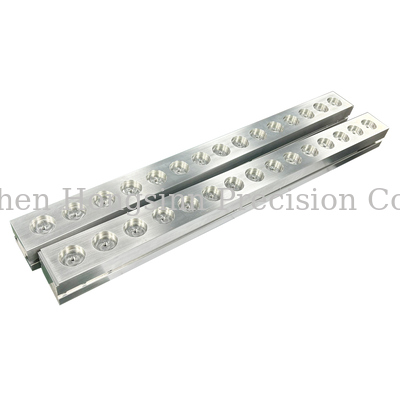

The product features a series of consecutive positioning slots. Positioning structures can be tailored to the specific shape of the workpiece and its assembly requirements, making it ideal for multi-station fixturing and repeatable positioning.
CNC Machining of Complex Slots
Utilizing precision CNC milling technology, we can machine semi-circular slots, irregular contours, counterbores, and various other complex geometries, ensuring dimensional accuracy and consistent machining quality.
Precision Hole Machining
We provide precision machining for mounting holes, counterbores, and threaded holes, meeting the requirements for equipment installation and fixture assembly.
Customized Surface Treatment
To suit the intended operating environment, we offer a range of surface treatments—including anodizing and hard-coat anodizing—to enhance both the appearance and surface performance of the product.
Flexible, Customized Production
We support everything from single-piece prototyping and small-batch trial runs to full-scale production. Machining processes are planned based on the 2D drawings or 3D models provided by the client.
Product Application Scope
Automated Production Equipment: Positioning plates for automated production lines, multi-station workpiece fixture plates, and equipment mounting components.
Precision Tooling and Fixtures: Product positioning jigs, auxiliary machining fixtures, assembly positioning plates, and securing tooling.
Industrial Assembly Equipment: Multi-station assembly platforms, product limiting components, and mechanical fastening structures.
Inspection Equipment: Precision inspection jigs, workpiece positioning plates, and mounting components for inspection equipment.
Non-Standard Mechanical Equipment: Custom mechanical structural components, equipment connecting plates, and specialized positioning components.
Hongsinn Precision Manufacturing Advantages
- Established in 2010, with over 15 years of experience in precision machining
- ISO 9001:2015 Quality Management System certified
- ISO 14001:2015 Environmental Management System certified
- Equipped with the AFMING GMU-800 EVO 5-axis machining center
- Extensive inventory of CNC lathes, turn-mill centers, and machining centers
- Inspection using Zeiss CONTURA Coordinate Measuring Machines (CMM)
- Supports rapid prototyping, as well as small-batch and high-volume production
- Products exported to markets in Europe, the US, Germany, Japan, Canada, and Southeast Asia
Frequently Asked Questions
- 1. Are you a trade company or manufacturer?
We are a manufacturer with more than 14 years of experience in CNC machining and sheet metal fabrication.
- 2. Can you protect my business? Will my drawing be safe after you get it?
Yes, we can sign the NDA before you send the drawing.
- 3. Available for customized design drawings?
Yes, we accept CAD, STEP, IGS, PDF, Solidwork, etc.
- 4. Do you provide samples?
Yes, there is a sample charge, which can be refunded when you place the order.
- 5. How soon can I get your quotation?
Within 12 hours.
- 6. What's the lead time?
5-25 working days, based on order quantity.
-
