Precision Aluminum Valve Blocks with Multi-Port Drilling for Industrial Hydraulic Systems

Precision CNC-Machined Aluminum Alloy Hydraulic Manifold Blocks

1. Product Introduction
Aluminum alloy hydraulic manifold blocks are precision mechanical components used in hydraulic and fluid control systems. They facilitate the connection between various pipelines and control elements, as well as the transmission of fluid, through internal flow channels, precision-machined oil ports, threaded interfaces, and mounting holes.

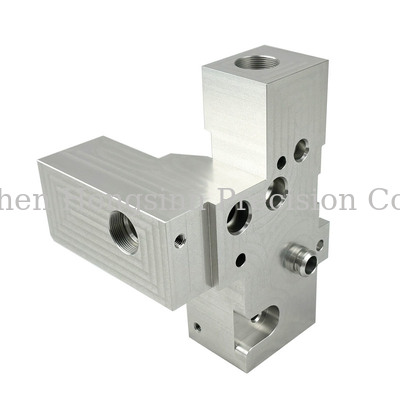

The product shown in the image features a complex, non-standard geometry, incorporating multiple holes of varying specifications, precision mounting interfaces, and stepped structural features. It demands high standards for positional accuracy, the spatial relationship between channels, surface quality, and manufacturing consistency.

Utilizing CNC (Computer Numerical Control) machining processes—including multi-sided milling, precision drilling, boring, tapping, and the fabrication of complex structural features—these components are engineered to meet the assembly requirements of diverse hydraulic systems and industrial equipment.

Shenzhen Hongsinn Precision offers custom manufacturing of aluminum alloy hydraulic manifold blocks, precision CNC manifold blocks, fluid control manifolds, and non-standard aluminum alloy structural components, based on 2D engineering drawings and 3D models provided by clients.

Technical Specifications

Product Machining Features and Advantages

(1) Precision Machining of Multiple Holes

The product features various oil ports, threaded holes, and mounting holes of different specifications. High-precision CNC machining equipment is utilized to ensure that the dimensions and positional relationships of all holes strictly conform to the engineering drawings.

(2) Machining of Complex Internal Flow Channels

For the internal flow channels and intersecting holes within hydraulic valve blocks, we employ precision drilling, boring, and multi-sided machining processes to achieve the required complex internal channel configurations.

(3) Multi-Sided CNC Machining Capabilities

By utilizing 3-axis, 4-axis, and 5-axis CNC machining technologies, we can perform multi-angle machining, process irregular contours, and handle complex structural geometries—all while minimizing errors caused by repeated workpiece clamping.

(4) Customized Surface Treatment

Tailored to the customer’s specific operating environment, we offer surface treatment services for aluminum alloys—such as anodizing and hard-coat anodizing—to enhance the product's corrosion resistance and surface performance.

(5) Precision Quality Inspection

We employ coordinate measuring machines (CMM), vision measuring systems, and other specialized inspection equipment to verify critical parameters, including product dimensions, hole positioning, and geometric tolerances.

Product Application Scope
These precision aluminum alloy valve blocks are primarily suitable for the following fields:
1. Hydraulic Control Systems: Hydraulic valve manifolds, hydraulic power units, hydraulic control circuits, and fluid distribution systems.
2. Construction and Engineering Machinery: Hydraulic systems for construction machinery, equipment actuators, and hydraulic control components.
3. Industrial Automation Equipment: Automated production lines, mechanical control systems, and fluid control components for industrial equipment.
4. Pneumatic Control Systems: Pneumatic manifolds, air distribution modules, and pneumatic control equipment.
5. Specialized Machinery: Non-standard (custom-engineered) machinery, bespoke hydraulic assemblies, and precision fluid control equipment.

Hongsinn Precision Manufacturing Advantages

• Established in 2010, with over 15 years of experience in precision machining
• ISO 9001:2015 Quality Management System certified
• ISO 14001:2015 Environmental Management System certified
• Equipped with the AFMING GMU-800 EVO 5-axis machining center
• Extensive inventory of CNC lathes, turn-mill centers, and machining centers
• Inspection using Zeiss CONTURA Coordinate Measuring Machines (CMM)
• Supports rapid prototyping, as well as small-batch and high-volume production
• Products exported to markets in Europe, the US, Germany, Japan, Canada, and Southeast Asia

Frequently Asked Questions

• 1. Are you a trade company or manufacturer?

  We are a manufacturer with more than 14 years of experience in CNC machining and sheet metal fabrication.

• 2. Can you protect my business? Will my drawing be safe after you get it?

  Yes, we can sign the NDA before you send the drawing.

• 3. Available for customized design drawings?

  Yes, we accept CAD, STEP, IGS, PDF, Solidwork, etc.

• 4. Do you provide samples?

  Yes, there is a sample charge, which can be refunded when you place the order.

• 5. How soon can I get your quotation?

  Within 12 hours.

• 6. What's the lead time?

  5-25 working days, based on order quantity.
