Machining Metal and Teflon: Essential Machining Drawings and Techniques
-
Highlight
CNC milling metal parts
,Teflon machining techniques
,CNC milling drawings guide
-
Product NameMachining Parts
-
Surface TreatmentAnodizing,polishing,chrome As Your Request
-
ServiceOEM /ODM CNC Machining
-
Apply ToAny OEM Cnc Machining Parts
-
SampleNeed To Pay Sample Fee
-
Tolerance0.01~±0.005mm
-
ProcessCnc Machining+deburrs
-
FeatureDurable And High Precision
-
ColorCustomized Color
-
Delivery Time3-5 Days For Sample Order, 10-15 Days For Bulk Order After
-
Place of OriginGuangdong
-
Brand NameHS
-
CertificationISO9001，ISO14001
-
Model NumberHS-45
-
Minimum Order Quantity1Piece/Pieces
-
PriceUSD,0.89-10.79,Piece/Pieces
-
Packaging DetailsEPE foam inside and Carton outside or EPE foam inside and Wooden outside
-
Delivery Time7-15 work days
-
Payment TermsL/C,D/A,D/P,T/T,Western Union,MoneyGram
-
Supply Ability5000,Piece/Pieces,Month
Machining Metal and Teflon: Essential Machining Drawings and Techniques
Precise machining drawings, expertise in machining metals, and specialized technology in machining polytetrafluoroethylene (PTFE).
|
Stainless Steel: SS201,SS301, SS303, SS304, SS316, SS416 etc.
|
|
Steel: mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# etc.
|
|
Brass: HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc.
|
|
Copper: C11000,C12000,C12000 C36000 etc.
|
|
Iron: A36, 45#, 1213, 12L14, 1215 etc.
|
|
Plastic: ABS, PC, PE, POM, Delrin, Nylon, PP,PEI, Peek etc.
|
|
CNC Milling work range: 510 * 1020 * 500 mm(max) Tolerance: +/-0.01 mm
|

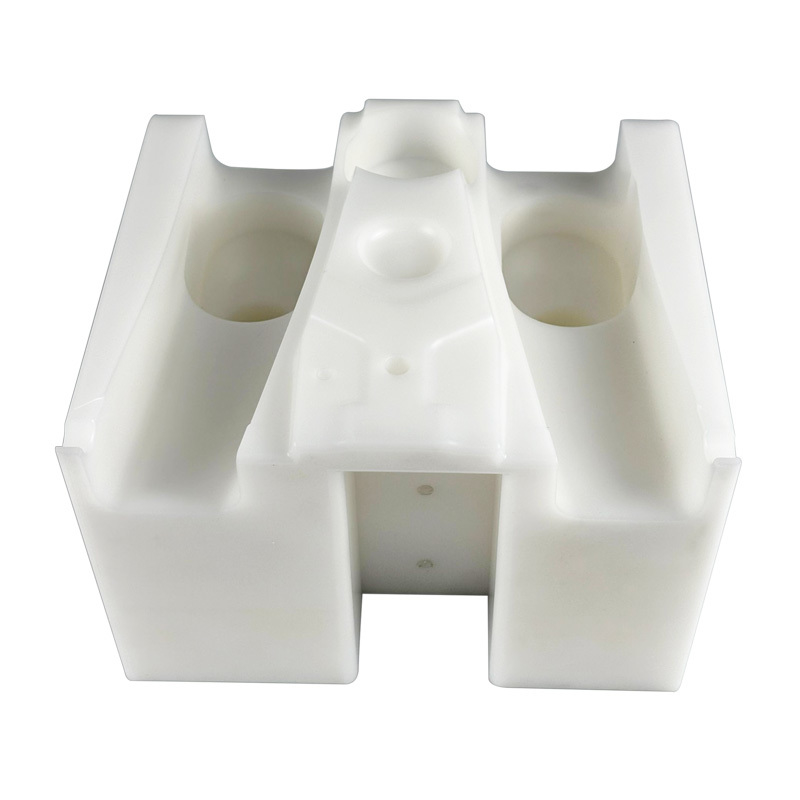

Polytetrafluoroethylene (PTFE) CNC Machining
Polytetrafluoroethylene (PTFE) is a fluoropolymer-based thermoplastic composed entirely of carbon and fluorine atoms, commonly known by the DuPont trade name Teflon. PTFE has the highest temperature resistance of all common engineering plastics and, due to its chemical composition, is extremely corrosion-resistant.
CNC machining of PTFE (Teflon) is relatively easy due to its low strength and relative flexibility. However, maintaining a high level of precision during machining can be challenging. Overall, PTFE is a high-quality material suitable for a variety of applications, particularly those requiring high-temperature and corrosion resistance.
Polytetrafluoroethylene (Teflon) differs from most engineering plastics due to its extremely high melting point, low coefficient of friction, and chemical inertness. These unique properties have made PTFE coatings widely used in non-stick cookware and various industries, including food and beverage, petrochemical, medical, and electrical components.
| Applications | Advantages | Disadvantages | Lead Time | Price | Tolerances |
|---|---|---|---|---|---|
|
Medical implants, pipe coatings for corrosive chemicals, electrical component insulation |
Food-safe, hydrophobic, high-temperature resistance, low friction coefficient |
Creates toxic fumes when overheated, poor abrasion resistance |
Lead times start at 3 days. |
Medium ($$) |
Standard tolerance is +/- 0.010” ; +/- 0.001" tolerances are achievable. |
Virgin PTFE (Teflon)
Although polytetrafluoroethylene (PTFE, Teflon) is primarily used as a coating, some medical implants are manufactured through CNC machining of PTFE. Due to its inertness, medical implants made from this material are not rejected by the body. Furthermore, its low coefficient of friction makes it an ideal choice for sliding contact components, such as bearings, ensuring good performance and durability.
| Tensile Strength, Yield (MPa) | Elongation at Break (%) | Hardness (Shore D) | Heat Deflection Temperature (°C) | Melting Temperature (°C) |
|---|---|---|---|---|
|
9-30 |
300-400 |
55-65 |
115 |
330 |
Note: For reference only. Values can vary slightly depending on the grade and manufacturer.
FAQ:
Q: Are you a trading company or manufacturer?
A: We are a factory.
Q: How can I obtain a quotation?
A: To receive a quotation, please send us drawings in formats such as IGS, DWG, STEP, etc., along with a detailed PDF. If you have any specific requirements, please include them in the request, and we will provide professional advice for your reference.
Q: What if I don't have a drawing?
A: In such cases, you can provide us with samples or drawings. Rest assured, we will ensure the safety and confidentiality of any provided drawings.
Q: What is your delivery time?
A: Normally, it takes 7-14 days for the parts to be ready. We have systems in place to ensure timely delivery.
Q: How do you ship the products? What are the packing details?
A: For small quantity orders, we have partnerships with courier services like TNT, FEDEX, UPS, etc. For larger quantities, air or sea shipment options are available. We have standard packing details, but if you have any specific requirements, we are willing to assist you.
Q: Do you provide samples? Is there an extra charge?
A: Yes, we can provide samples, but there may be an extra charge for them.
Q: What are your payment terms? How can I make the payment?
A: Our payment terms are 50% T/T (bank transfer) in advance, with the balance payment due before shipment. If you have any other questions, please feel free to contact us.
Our products are sold all over the world, you can rest assured.
