Hot Runner Precision Mold Parts Inserts For Cavity And Cores

Hot Runner Precision Mold Parts Inserts For Cavity And Cores

  • High Light

    hot runner mold parts

    ,

    hot runner Precision mold parts

    ,

    cavity mold parts

  • Delivery Time
    3-7 Days For Sample Order, 10-15 Days For Bulk Order After
  • Product Name
    Mold Parts
  • Surface Treatment
    Anodizing,polishing,chrome As Your Request
  • Service
    OEM /ODM
  • Apply To
    Any OEM Cnc Machining Parts
  • Sample
    Need To Pay Sample Fee
  • Tolerance
    0.001-0.005mm
  • Process
    Cnc Machining+deburrs
  • Feature
    Durable And High Precision
  • Color
    Customized Color
  • Place of Origin
    Guangdong
  • Brand Name
    HS
  • Certification
    ISO
  • Model Number
    HS-107
  • Minimum Order Quantity
    1,Piece/Pieces
  • Price
    USD,4.55-32.46,Piece/Pieces
  • Packaging Details
    EPE foam inside and Carton outside or EPE foam inside and Wooden outside
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5000,Piece/Pieces,Month

Hot Runner Precision Mold Parts Inserts For Cavity And Cores

Precision Mold Components Inserts for Cavities and Cores



Mold component description:

  1. Slides and Lifters: Slides and lifters are essential elements in mold design and are used to create complex features, undercuts, or side actions in the molded part. Slides enable the mold to move in different directions to form specific shapes or angles, while lifters are used to extract the molded part from the mold by lifting it out of undercuts.
  2. Ejector Pins: Ejector pins play a crucial role in the mold ejection process. These pins are strategically placed within the mold and are activated during the ejection phase to push the molded part out of the mold cavity.
  3. Cooling Channels: Cooling channels are integrated into the mold design to regulate and control the temperature during the molding process. These channels allow for the circulation of cooling fluids, such as water or oil, to dissipate heat and ensure proper solidification of the molded part, leading to improved cycle times and overall product quality.
Materials
Aluminum, copper, brass, stainless steel, carbon steel, steel, iron, alloy, zinc,titanium, etc.
Surface Treatment
Anodizing, Brushing, Galvanized, Laser engraving, Silk printing, Polishing, Powder coating, etc.
Tolerance
±0.1~0.002mm, 100% QC quality inspection before delivery, can provide quality inspection form
Testing equipment
RoHS tester , callipers , salt spary tester , 3D coordonate measuring instrument
Processing
CNC turning, CNC milling, CNC machining, Grinding, EDM wire cutting
File Formats
Solid Works, Pro/Engineer, AutoCAD(DXF,DWG), PDF, TIF etc.
Service Project
Mold design, mold product, and customization of logo, etc.
Quality Assurance
ISO9001:2015
Our Advantages
1.Reply in time: Reply within 2 hours, TM reply within 30 minutes;
2.10+ years of experience in the metal products processing area and advanced processing machines in saving materials;
3.100% QC quality inspection before delivery;
4.Delivery on time: two shifts in production.

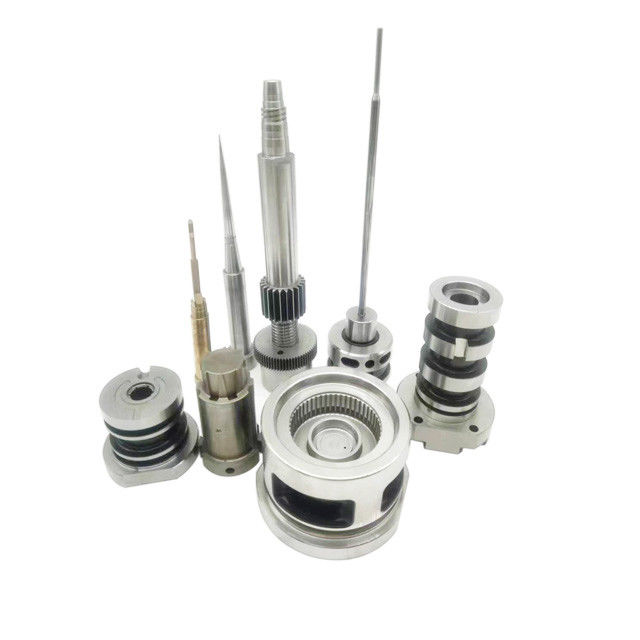

Hot Runner Precision Mold Parts Inserts For Cavity And Cores 0

FAQ:

Q1: Where can I get product & price information?
A1:Send us inquiry e-mail, we will contact you as we receive your mail.


Q2: How long can I get the sample?
A2:Depends on your specific items, within 3-7 days is required generally.


Q3: What kinds of information you need for quote?
A3:Kindly please provide the product drawing in PDF, and will be better you can provide in STEP or IGS.


Q4: What are the payment terms?
A4: We accept 50% as payment deposit, when the goods is done, we take photos for your check and you then pay the balance.
For small amount, we accept Paypal, Paypal commission will be added to the order. For big amount, T/T is preferred.


Q5: Are you a trading company or factory?
A5:We are direct factory with 10 experienced engineers and more than 70 employees as well approximate 3,000 square meters workshop area.


Q6: What shall we do if we do not have drawings?
A6:Please send your sample to our factory, then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions (Length, Hight, Width), CAD or 3D file will be made for you if placed order.
